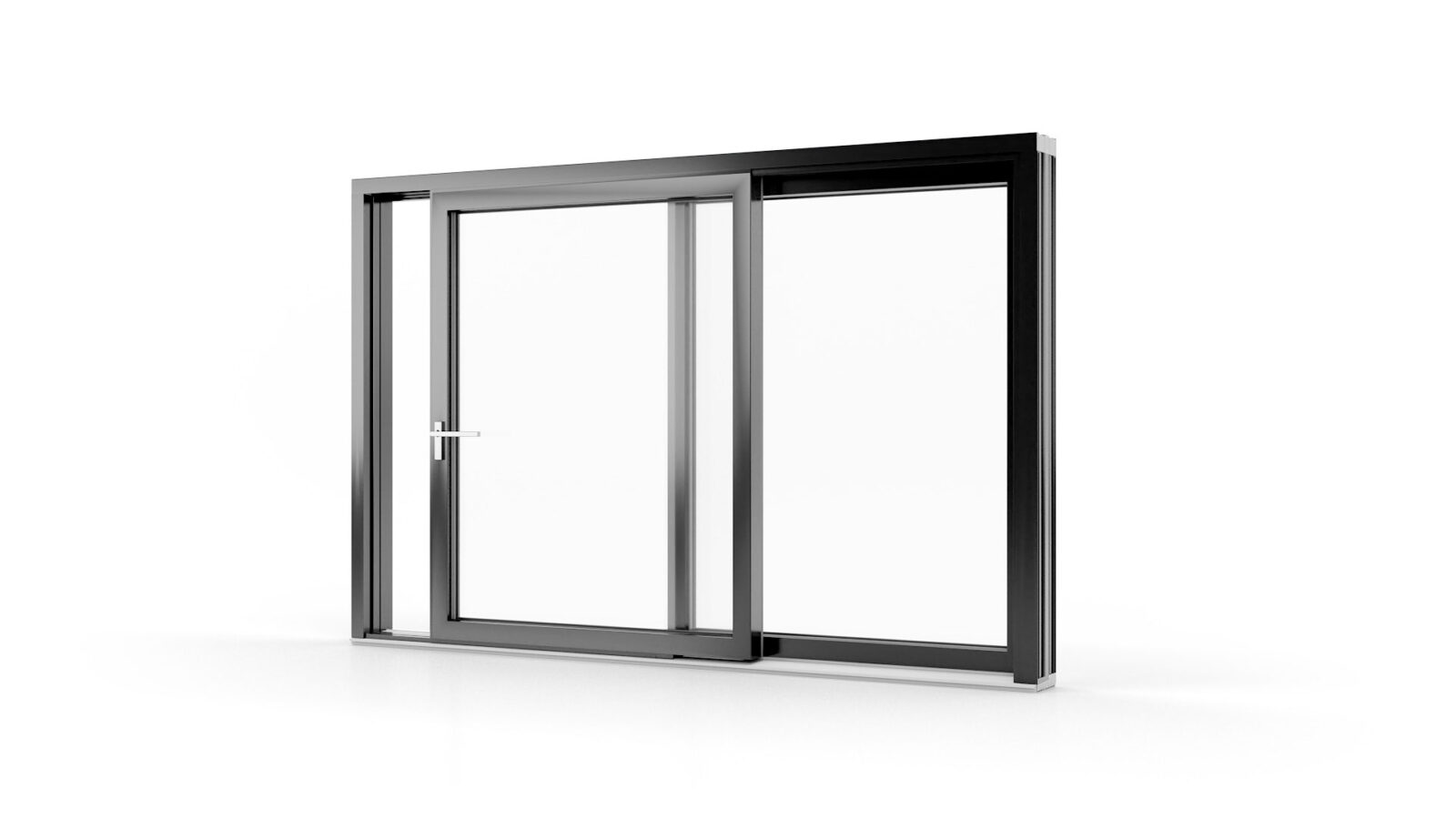

COR Vision is an aluminium sliding system characterised by modern aesthetics and exceptional thermal parameters. Its elegant design is based on very slim visible profiles, which make up only 9–14% of the full structure.
| Feature | Value |
|---|---|
| Guiding rails | 2 |
| Uw | 1.4 W/m²K for a 3200 × 2500 mm door with 6ESG / 16Ar / 6ESG glazing (Ug = 1.1 W/m²K) |
| Profile depth | 116 mm |
| Glazing | 26–30 mm |
| Sash depth | 37 mm |
| Maximum dimensions | H up to 3000 mm, L up to 2500 mm |
| Maximum sash weight | 320 kg (optimally 200 kg) |
| Thermal break width | 16–24 mm |
| Finishes | Full RAL K7 palette and other colours on request (powder code) |

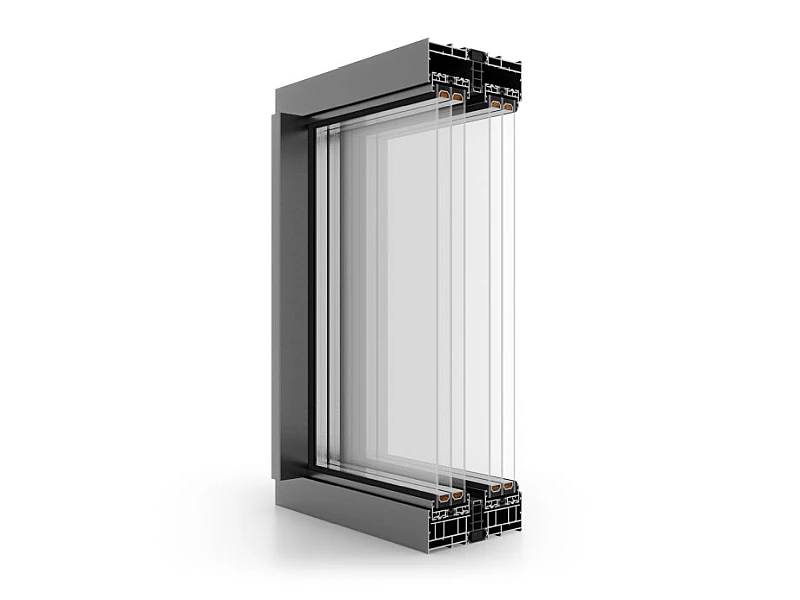

COR Vision Plus is a minimalist aluminium sliding system designed for large glazing with up to 94% glass area. It maximises natural light while minimising the visible aluminium cross-sections.
| Feature | Value |
|---|---|
| Guiding rails | 2 |
| Uw | 0.95 W/m²K for a 3200 × 2500 mm door with 6ESG / 18Ar / 6ESG / 18Ar / 6ESG glazing (Ug = 0.5 W/m²K) |
| Profile depth | 180 mm |
| Glazing | 36–54 mm |
| Maximum dimensions | H up to 4000 mm, L up to 4000 mm |
| Maximum sash weight | 400 kg manual / 700 kg motorised |
| Thermal break width | Frame 40 mm; sash 18–32 mm |
| Glass area | Up to 94% of the structure |
| Finishes | Full RAL K7 palette and other colours on request (powder code) |

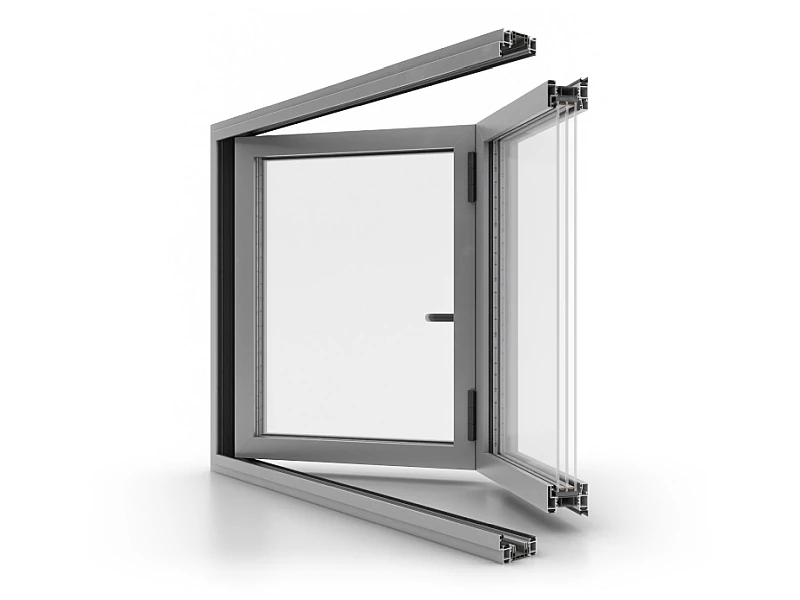

Cortizo Bifold Plus is part of the premium Cortizo aluminium range, developed for large openings that make a strong visual and functional impact. Its slim profiles maximise natural light while still allowing thick glazing and strong thermal performance.
The system can use up to 7 leaves, opening outwards or inwards in various configurations. Double-sided adjustable connectors are supplied as standard, making larger configurations easier to assemble. Clients can choose standard thresholds with discreet linear drainage or reduce the threshold height to just 23.5 mm.
The system is thermally efficient, acoustically capable and available in smooth or textured RAL finishes, including wood effects and independent inside / outside colours.
| Feature | Value |
|---|---|
| Guiding rails | 1 |
| Reference Uw | Value stated for constructions sized 3000 × 2650 mm |
| Installation depth | 80 mm |
| Glazing | Up to 48 mm thick |
| Maximum leaf size | H 3000 mm / L 1200 mm |
| Maximum leaf weight | 120 kg |
| Configuration | Up to 7 leaves opening inwards or outwards |
| Standard feature | Double-sided adjustable connectors |
| Threshold options | Optional low threshold 23.5 mm |
| Drainage option | Optional linear drainage for 53.5 mm threshold |
| Design options | Exceptionally slender profiles, bicolour option, smooth or textured RAL colours |
MB Fold Line HD is an ideal folding door solution for terraces and spacious passages between rooms. It offers very high technical parameters, allowing large-scale constructions without compromise.
| Feature | Value |
|---|---|
| Uw | 1.4 W/(m²K) for a 4000 × 2200 mm door with 4th / 16Ar / 4 / 16Ar / 4th package (Ug = 0.6 W/(m²K), argon-filled, aluminium frame) |
| Frame / sash depth | 88 mm frame / 77 mm sash |
| Glazing | 14–61.5 mm |
| Insulation | Thermally insulated system |
| Threshold | Classic or low threshold |
| Finishes | Full RAL K7 palette and other colours on request (powder code) |

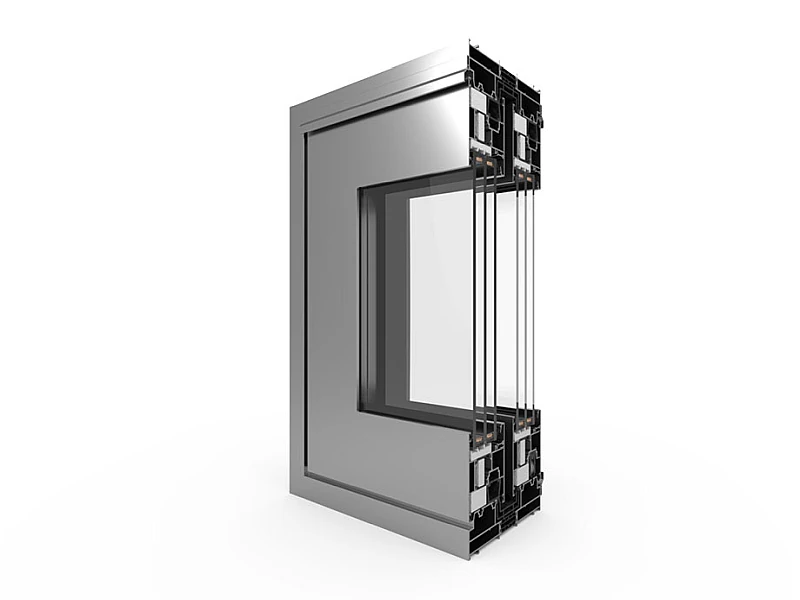

MB 77 HS is an exclusive lift-and-slide door system designed for large constructions while maintaining excellent thermal insulation. Its innovative design also allows the sashes to connect at a 90-degree corner without the need for a fixed corner post.
| Feature | Value |
|---|---|
| Guiding rails | 2 or 3 |
| Uw | 1.5 W/(m²K) for a 4000 × 2200 mm door with 4th / 16Ar / 4 / 16Ar / 4th package (Ug = 0.6 W/(m²K), argon-filled, aluminium frame) |
| Sash depth | 77 mm |
| Glazing | Up to 58.5 mm |
| Frame depth | 174 mm (2-rail profile), 271 mm (3-rail profile) |
| Maximum sash weight | 400 kg |
| Thermal break | System with thermal break |
| Finishes | Full RAL K7 palette and other colours on request (powder code) |
| Other brands available | Reyanaers, Aliplast and Deceuninck available on request |
